Three Operating Modes
The platform supports 2.4GHz wireless, Bluetooth and dual 3.5mm wired operation for different device and project requirements.
TRI-MODE GAMING HEADSET OEM

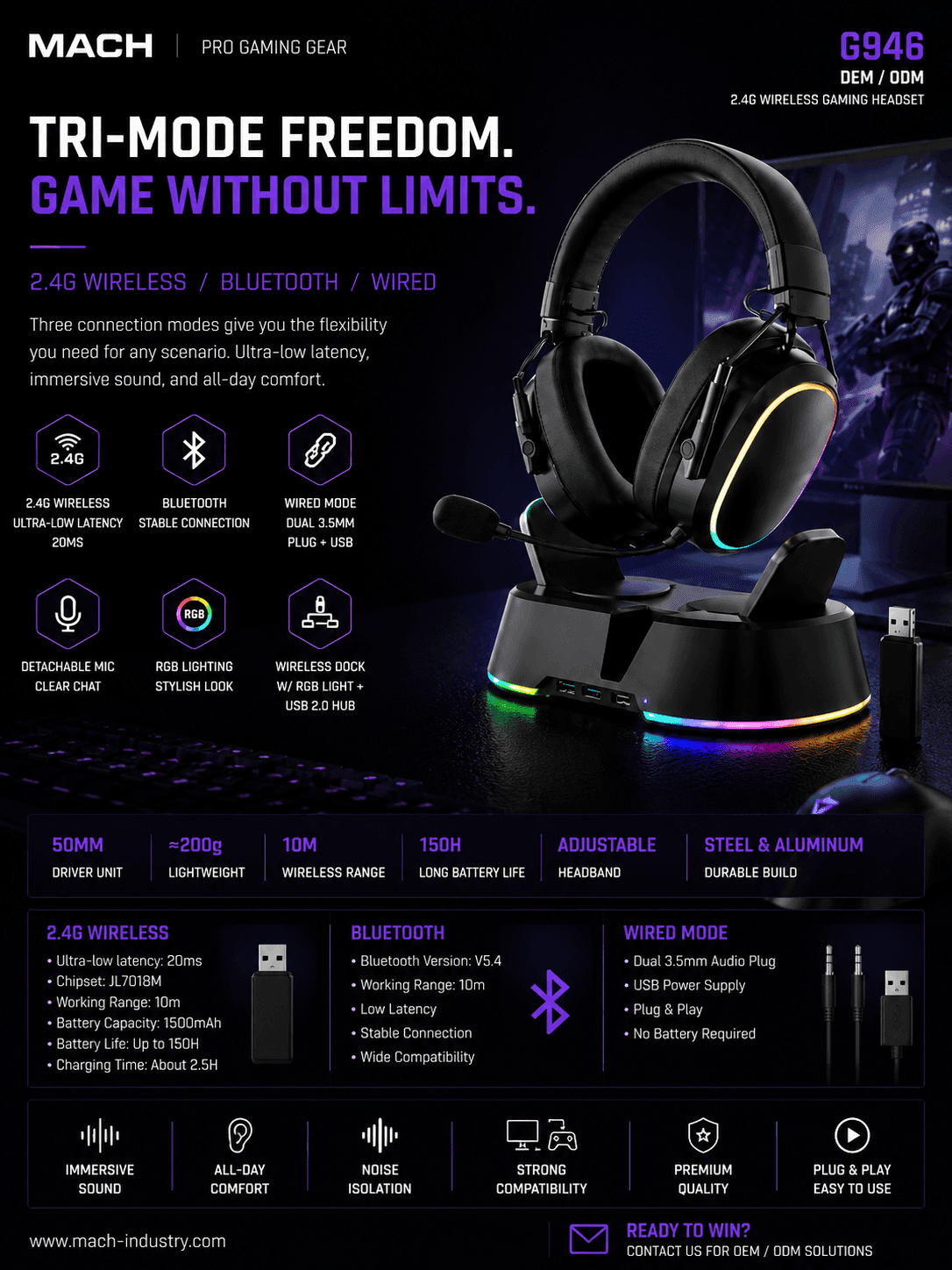

G946 Tri-Mode Gaming Headset
2.4GHz wireless, Bluetooth and 3.5mm wired flexibility with a 50mm driver, detachable microphone and RGB dock.
G946 is an OEM-ready gaming headset platform designed around three connection modes. It combines a dedicated 2.4GHz wireless path, Bluetooth operation and a dual 3.5mm wired connection with a lightweight metal-supported structure, RGB lighting and a multifunction dock.
MODEL
G946
MOQ
Contact MACH
LEAD TIME
Project-based
A Tri-Mode Headset and Dock Platform for Gaming Brands
The G946 combines 2.4GHz wireless, Bluetooth and 3.5mm wired operation in one over-ear gaming headset. Its 2.4GHz mode is specified at 20ms latency with transmission up to 10m, while Bluetooth supports a second wireless route and the dual 3.5mm connection provides a wired option. This gives product teams a single platform for gaming accessory programs that need multiple connection choices.
The acoustic system uses a 50mm driver rated at 32Ω impedance, 110dB sensitivity and a 20Hz–20kHz frequency response. A detachable plug-in microphone is specified with a 50Hz–16kHz frequency range, -42dB ±3dB sensitivity and impedance of no more than 2.3kΩ. The Product Card additionally identifies ENC microphone support for the selected product direction.
The headset uses a built-in stainless steel support bar, an anodized aluminum frame, an adjustable headband and a stated approximate weight of 200g. RGB lighting is integrated into the gaming appearance. The supplied dock adds RGB base lighting and a USB 2.0 hub, creating a coordinated desktop presentation and accessory platform.
For OEM and ODM projects, MACH can evaluate branding, color, RGB appearance, packaging, microphone, dongle and dock requirements against the G946 base platform. Final MOQ, lead time, firmware scope and compliance planning depend on the approved project configuration. Battery capacity and working time are not published as structured specifications because they are not confirmed in the formal specification sheet.
Why Buyers Evaluate the G946
Specified 20ms Wireless Mode
The formal product specification lists 20ms latency for the dedicated 2.4GHz wireless connection.
50mm Acoustic Platform
A 50mm driver, detachable microphone and over-ear construction provide a defined base for acoustic and communication evaluation.
Multifunction RGB Dock
The wireless dock combines headset placement, RGB base lighting and a USB 2.0 hub for a more complete retail proposition.
Confirmed G946 Features
2.4GHz wireless, Bluetooth and 3.5mm wired modes
20ms latency specified for 2.4GHz mode
Transmission distance up to 10m
50mm driver with 32Ω impedance
Detachable plug-in microphone
ENC microphone support identified in the Product Card
RGB headset lighting
Wireless dock with RGB base lighting and USB 2.0 hub
Adjustable headband with stainless steel and anodized aluminum structure
Approximately 200g headset weight
G946 Technical Specifications
The specifications below are limited to values confirmed by the G946 Product Card and formal specification image.
Model
G946
Connection Modes
2.4GHz wireless, Bluetooth, 3.5mm wired
2.4GHz Chipset Platform
JL
2.4GHz Latency
20ms
Transmission Distance
Up to 10m
Driver
50mm
Speaker Impedance
32Ω
Speaker Sensitivity
110dB
Frequency Response
20Hz–20kHz
Microphone Type
Detachable plug-in microphone
Microphone Frequency
50Hz–16kHz
Microphone Sensitivity
-42dB ±3dB
Microphone Impedance
≤2.3kΩ
Operating Voltage
3.0–4.2V
Operating Current
55mA
Headset Weight
Approximately 200g
Frame
Stainless steel support bar and anodized aluminum frame
Dock
RGB base lighting and USB 2.0 hub
Buyer and Product Applications
Gaming audio brands developing a tri-mode headset line
PC and notebook accessory programs
Nintendo Switch and mobile gaming directions shown in the supplied specification
Xbox One projects requiring separate compatibility evaluation and the indicated Microsoft adapter
PS4 accessory programs shown in the supplied specification
Private-label e-commerce and retail gaming bundles
G946 OEM/ODM Project Evaluation
MACH evaluates customization against the selected G946 configuration, target devices, branding brief and sales market. Availability and development cost are confirmed after engineering review.
Brand logo and identity requirement evaluation
Product color, CMF and RGB direction evaluation
Retail packaging and user material planning
Detachable microphone requirement review
Dongle and wireless dock configuration review
Firmware and platform behavior evaluation
Sampling and approved-specification confirmation
OEM/ODM Support for G946 Programs
Connection-mode and device requirement review
Acoustic and microphone evaluation planning
Branding, RGB and packaging coordination
Dock, dongle and accessory configuration review
Sample validation before mass production
Quality control against the approved specification
Certification Support by Target Market
No G946 certification files were supplied in the product folder. Certification support is available according to the target market and final product configuration.
CE support
FCC support
RoHS and REACH support
UKCA support
KC, PSE and TELEC project evaluation
BQB / Bluetooth qualification support

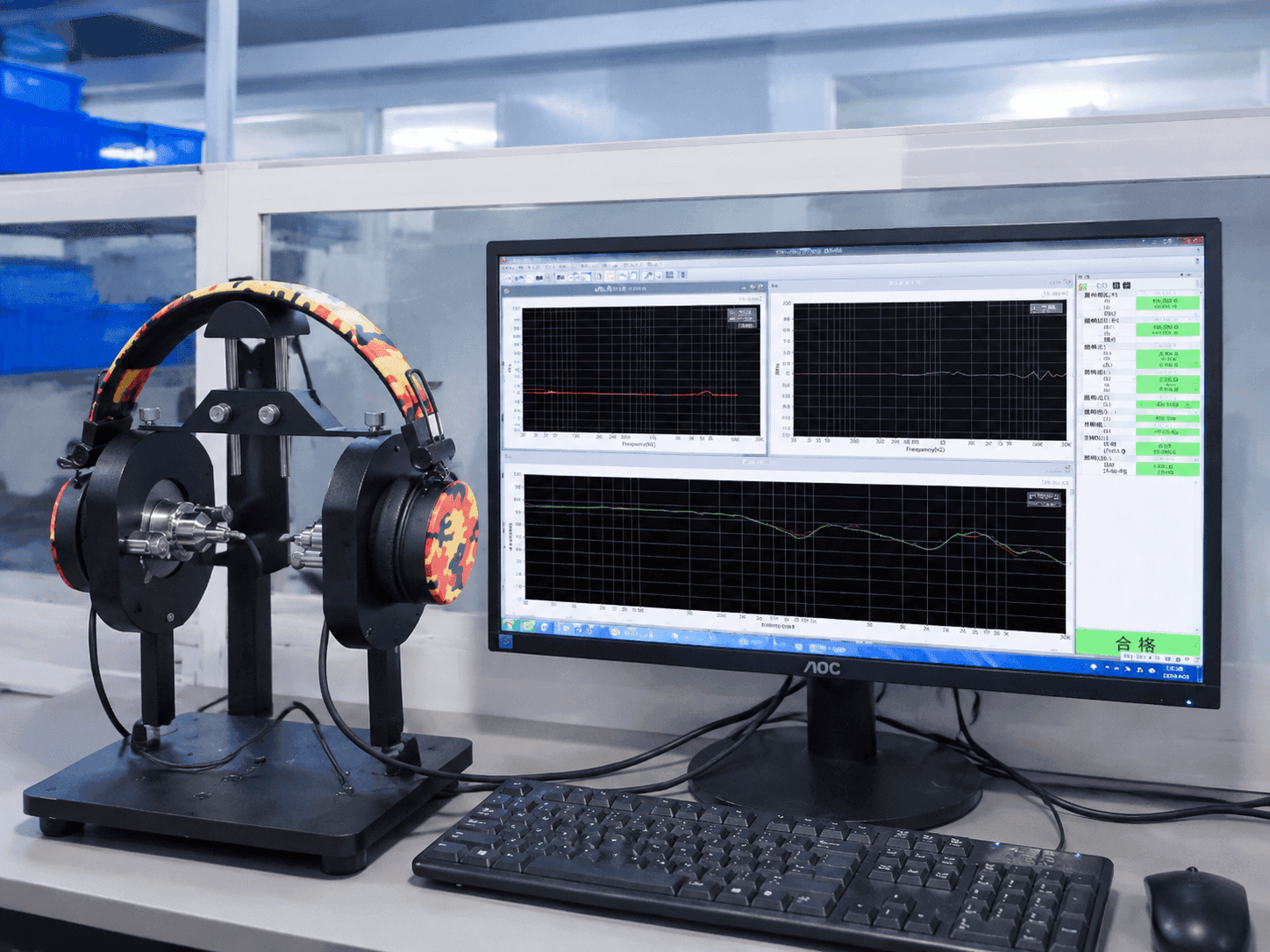

Acoustic and Functional Validation
G946 project validation can cover acoustic performance, microphone function, wireless modes, wired operation, RGB appearance, dock functions and final assembly against the approved sample.
Incoming material inspection
Driver and microphone checks
2.4GHz and Bluetooth function verification
3.5mm wired-mode verification
RGB, dock and USB hub inspection
Appearance and final shipment inspection
G946 OEM/ODM Buyer FAQ
What connection modes does the G946 support?
The G946 Product Card and specification confirm 2.4GHz wireless, Bluetooth and 3.5mm wired operating modes.
What is the specified 2.4GHz latency?
The formal G946 specification lists 20ms latency in 2.4GHz wireless mode.
What driver does the G946 use?
The headset uses a 50mm driver specified at 32Ω impedance, 110dB sensitivity and a 20Hz–20kHz frequency response.
Is the microphone detachable?
Yes. The supplied specification identifies a detachable plug-in microphone with -42dB ±3dB sensitivity.
Does the G946 include an RGB dock?
The supplied specification shows a wireless dock with RGB base lighting and a USB 2.0 hub.
Is USB used as an audio connection?
USB Audio is not confirmed in the Product Card. The formal material identifies dual 3.5mm wired plugs and USB-related dock or power functions, so USB Audio is not claimed on this page.
Which platform directions are shown for the G946?
The supplied specification shows PC/notebook, Nintendo Switch, mobile devices, Xbox One and PS4. Exact audio, microphone and control behavior should be confirmed for each target device during project evaluation.
Can MACH evaluate custom branding, RGB and packaging?
Yes. MACH can evaluate branding, color, RGB appearance, packaging, microphone, dongle and dock requirements for an OEM/ODM project.
What is the MOQ for a private-label G946 project?
MOQ depends on the selected product configuration, branding requirements and packaging customization. Please contact MACH for project evaluation.
Is the G946 already certified for all listed markets?
No G946 certification files were supplied for this page. Certification support is available according to the target market and final product configuration.
Prepare a G946 RFQ
Share the target market, required connection modes, device requirements, branding direction, dock configuration, packaging brief and expected quantity for project evaluation.
Target devices and required operating modes
Branding, color and RGB direction
Microphone, dongle and dock requirements
Packaging and accessory configuration
Compliance support requirements
Discuss Your G946 Tri-Mode Gaming Headset Project
Send MACH your device requirements, customization brief, RGB and dock direction, packaging plan and expected quantity for a G946 OEM/ODM evaluation.
About MACH
MACH supports overseas gaming audio buyers with OEM/ODM product evaluation, customization, sampling and manufacturing coordination.
For G946 projects, MACH can coordinate connection modes, acoustic components, microphone performance, RGB appearance, dock configuration, branding, packaging and quality control after the final specification is confirmed.
