Distinct Black Variant
The G946 BK identity separates this black configuration from existing white and charging-dock variants.
Black Tri-Mode OEM Gaming Headset
G946 BK Black Low-Latency Tri-Mode Wireless Gaming Headset
A black OEM gaming headset platform combining 20ms 2.4GHz wireless, Bluetooth and 3.5mm wired audio with a 50mm driver and 2000mAh battery.
Developed for gaming audio brands and private-label projects that need a clearly defined black tri-mode configuration with RGB lighting, a plug-in ENC microphone and extended playback when lighting is disabled.
Model
G946 BK
MOQ
Project dependent
Lead Time
Project dependent after configuration review
G946 BK Black Tri-Mode Gaming Headset Overview
G946 BK is the black version of a tri-mode gaming headset platform supporting 2.4GHz wireless, Bluetooth and 3.5mm wired operation. Its confirmed configuration combines a 50mm driver, plug-in ENC microphone, USB wireless dongle and RGB lighting.
The supplied specification identifies 20ms latency for the 2.4GHz mode, a 10-meter transmission distance and a 2000mAh battery rated for approximately 150 hours of playback when the lighting is off. This version is positioned for OEM buyers developing a differentiated black gaming headset program.
No formal user manual was supplied for this upload. Platform-specific audio, microphone and control behavior should therefore be confirmed during project evaluation rather than presented as universal compatibility.
Buyer Benefits
Three Connection Paths
2.4GHz wireless, Bluetooth and 3.5mm wired modes support different product-use requirements within one confirmed platform.
Specified 20ms Wireless Latency
The supplied specification identifies 20ms latency for the 2.4GHz operating mode.
Extended No-Light Runtime
The 2000mAh battery is specified for approximately 150 hours of playback when RGB lighting is switched off.
Confirmed G946 BK Features
2.4GHz wireless, Bluetooth and 3.5mm wired operating modes
USB wireless dongle included
20ms specified latency in 2.4GHz mode
50mm driver with 32-ohm impedance
2000mAh battery and approximately 150 hours playback with lighting off
Plug-in microphone with ENC support
RGB ear cup lighting
Built-in stainless steel support bar and anodized aluminum frame
Extendable arm and approximately 200g headset weight
Technical Specifications
The values below are taken from the supplied G946 specification. The chipset source identifies only the JL platform and does not provide a more specific part number.
Model
G946 BK
Connection
2.4GHz wireless + Bluetooth + 3.5mm wired
2.4GHz Chipset Platform
JL
2.4GHz Latency
20ms
Transmission Distance
10m
Driver
50mm / 32 ohms
Frequency Response
20Hz-20kHz
Sensitivity
110dB
Battery
2000mAh
Playback Time
Approximately 150 hours with lighting off
Standby Time
Approximately 1200 hours
Charging Time
Approximately 3-4 hours
Microphone
Plug-in microphone with ENC support
Weight
Approximately 200g
Suitable OEM Applications
Black wireless gaming headset product lines
2.4GHz low-latency gaming audio programs
Tri-mode private-label gaming headset projects
Long-runtime wireless headset portfolios
50mm gaming headset programs with plug-in microphone requirements
OEM/ODM Project Evaluation
The Product Card identifies this version as a custom OEM platform. Specific customization scope must be reviewed against the buyer's confirmed requirements and final configuration.
Project-specific branding requirements can be evaluated
Color and visual identity requests can be reviewed against the G946 BK platform
Packaging requirements can be evaluated after project confirmation
Final connection, accessory and lighting configuration must be confirmed before sampling
Certification support can be planned according to the target market and final configuration
Why Evaluate G946 BK With MACH
A clearly separated black G946 BK product identity for OEM project discussion
A confirmed tri-mode platform with defined 2.4GHz latency, driver and battery data
Project review covering configuration, branding and packaging requirements
Acoustic, aging, reliability, final-inspection and packaging quality-control support shown in the supplied project materials
Certification Support
No product-specific certification documents were supplied for this upload. Certification support is available according to the target market and final product configuration.
CE support according to final configuration and target market
FCC support according to final configuration and target market
RoHS and REACH support according to confirmed project requirements
UKCA, KC, PSE, TELEC and Bluetooth qualification support can be evaluated

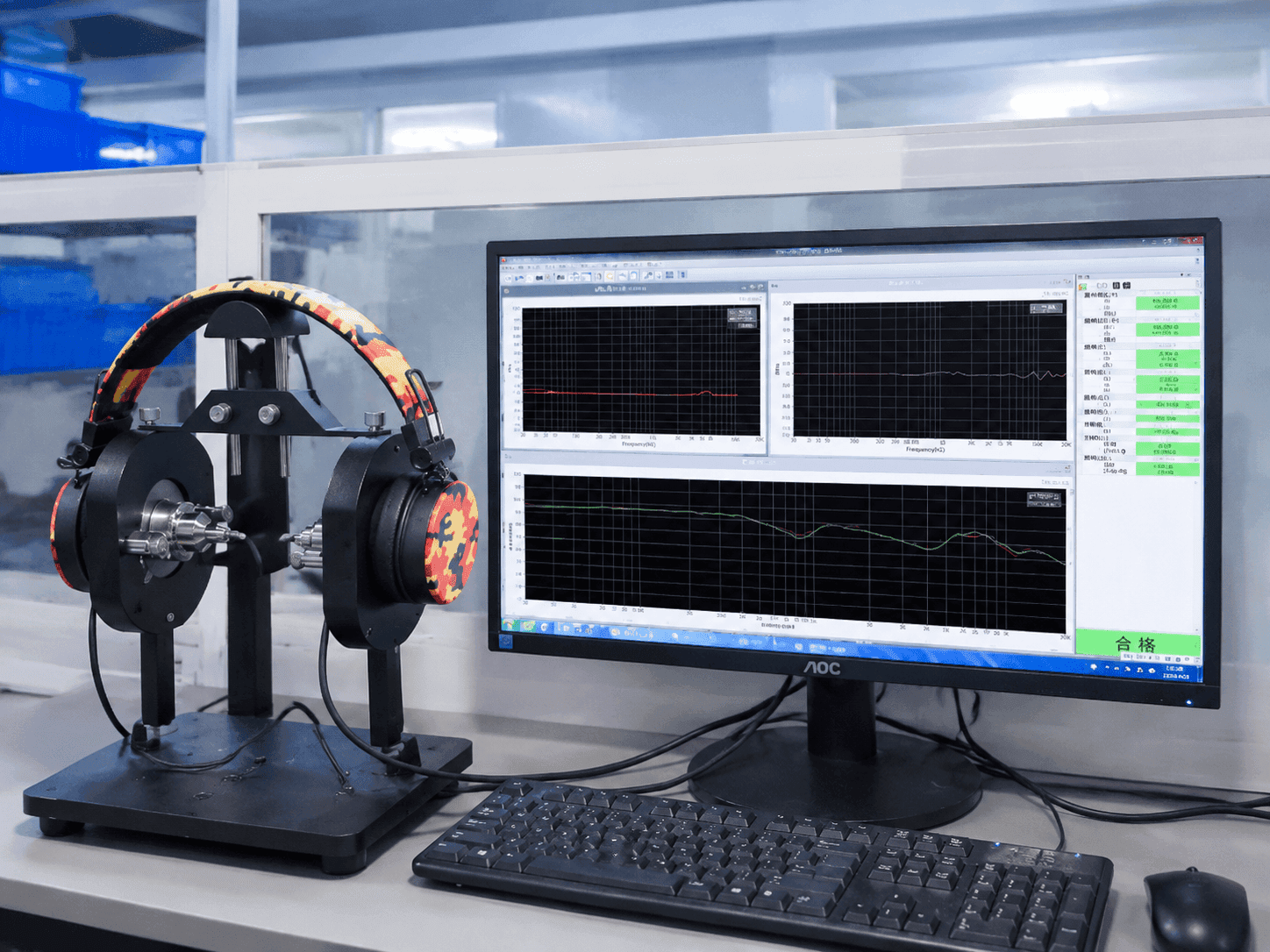

Manufacturing and Quality-Control Support
The supplied G946 project folder includes MACH manufacturing and quality-control imagery covering production, acoustic evaluation, aging, reliability, final inspection and packaging operations.
Acoustic evaluation for gaming headset projects
Aging and reliability testing within the project quality plan
Final inspection and packaging quality-control workflow
OEM/ODM project coordination before production
G946 BK OEM Project FAQ
Which connection modes does the G946 BK support?
The supplied Product Card and specification confirm 2.4GHz wireless, Bluetooth and 3.5mm wired operation. A USB wireless dongle is included.
What latency is specified for the G946 BK?
The supplied specification identifies 20ms latency for the 2.4GHz wireless mode.
What driver is used in this black G946 version?
The G946 BK specification confirms a 50mm driver with 32-ohm impedance, 110dB sensitivity and a 20Hz-20kHz frequency response.
What battery capacity and playback time are specified?
The supplied specification lists a 2000mAh battery and approximately 150 hours of playback when the RGB lighting is off. Charging time is approximately 3-4 hours.
Does the G946 BK include RGB lighting?
Yes. RGB lighting is selected in the Product Card and is visible on the supplied black product images.
Is a microphone included?
Yes. The confirmed configuration uses a plug-in microphone, and the Product Card identifies ENC microphone support.
Which gaming platforms are supported?
No formal user manual was supplied with this upload, so platform-specific audio, microphone and control compatibility is not stated as universal. Please provide the target platforms for project verification.
Can the logo, color and packaging be customized?
The Product Card identifies a custom OEM version. Branding, color and packaging requirements can be evaluated, but the final customization scope must be confirmed for the selected configuration.
What is the MOQ for a G946 BK OEM project?
MOQ depends on the selected product configuration, branding requirements and packaging customization. Please contact MACH for project evaluation.
Can samples be requested?
Please contact MACH to confirm sample availability after the G946 BK configuration, branding and packaging requirements have been reviewed.
What certification support is available for the G946 BK?
No product-specific certification documents were supplied for this upload. Certification support is available according to the target market and final product configuration.
Prepare a G946 BK OEM Brief
Share the target market, required connection modes, branding direction, packaging needs and expected quantity so MACH can evaluate the black G946 BK configuration.
Target market and intended sales channel
Required 2.4GHz, Bluetooth and 3.5mm operating scope
Branding, color and packaging requirements
Target platforms requiring compatibility verification
Certification support requirements
Discuss Your G946 BK Gaming Headset Project
Send MACH your target market, platform requirements, branding direction and packaging brief for a configuration review.
About the G946 BK OEM Platform
The G946 BK materials define a black tri-mode gaming headset with a JL 2.4GHz platform, 20ms specified wireless latency, 50mm driver, plug-in ENC microphone, RGB lighting and a 2000mAh battery.
MACH can evaluate project-specific OEM requirements against this confirmed configuration. Compatibility, certification and customization scope should be finalized from the buyer's target-market and product requirements before sampling or production.
