Distinct Lightweight Positioning
The supplied specification lists the headset at approximately 201g, giving the red-accent configuration a clear product identity.
LIGHTWEIGHT RED TRI-MODE OEM PLATFORM
G941 Red Lightweight Tri-Mode Gaming Headset
A distinct red-accent G941 platform combining three connection routes with an approximately 201g headset structure.
G941 Red supports 2.4GHz wireless, Bluetooth and dual 3.5mm connection, together with a 50mm driver, 20ms specified 2.4GHz latency, a plug-in microphone, RGB lighting and a 1000mAh battery for private-label gaming audio projects.
MODEL
G941 Red
MOQ
Project evaluation required
LEAD TIME
Based on final configuration
G941 Red Product Overview
G941 Red is identified in the supplied Product Card as a wireless gaming headset for custom OEM projects. Its connection set combines 2.4GHz wireless, Bluetooth and a dual 3.5mm plug, allowing buyers to evaluate one physical platform for wireless gaming, Bluetooth use and analog wired audio configurations.
The supplied specification lists a JL 2.4GHz solution with 20ms latency and a 10-meter transmission distance. A 50mm driver, 32Ω impedance, 110dB sensitivity and 20Hz–20kHz frequency response define the published acoustic data for this configuration.
The headset is listed at approximately 201g and uses a built-in stainless steel bar, anodized aluminum frame, extendable arm and plug-in microphone. These confirmed structural details support a separate lightweight red-accent product position rather than duplicating the existing general G941 ODM page.
MACH can evaluate logo, color and CMF, packaging, ID and mechanical development, acoustic tuning, microphone tuning, dongle and accessory requirements according to the final OEM project scope.
Why Buyers Evaluate G941 Red
Three Connection Routes
2.4GHz wireless, Bluetooth and dual 3.5mm connection support different product-use directions from one headset platform.
50mm Acoustic Platform
The confirmed 50mm driver is listed with 32Ω impedance, 110dB sensitivity and a 20Hz–20kHz response.
OEM Appearance Direction
The red-accent structure can be evaluated with logo, branding, color, CMF and packaging requirements for private-label programs.
G941 Red Key Features
2.4GHz wireless connection with included dongle
Bluetooth connection
Dual 3.5mm wired connection
20ms specified 2.4GHz latency
50mm high-fidelity driver
Approximately 201g headset weight
Plug-in microphone with ENC support
Built-in stainless steel bar and anodized aluminum frame
Extendable adjustment arm
RGB lighting
1000mAh battery
G941 Red Technical Specifications

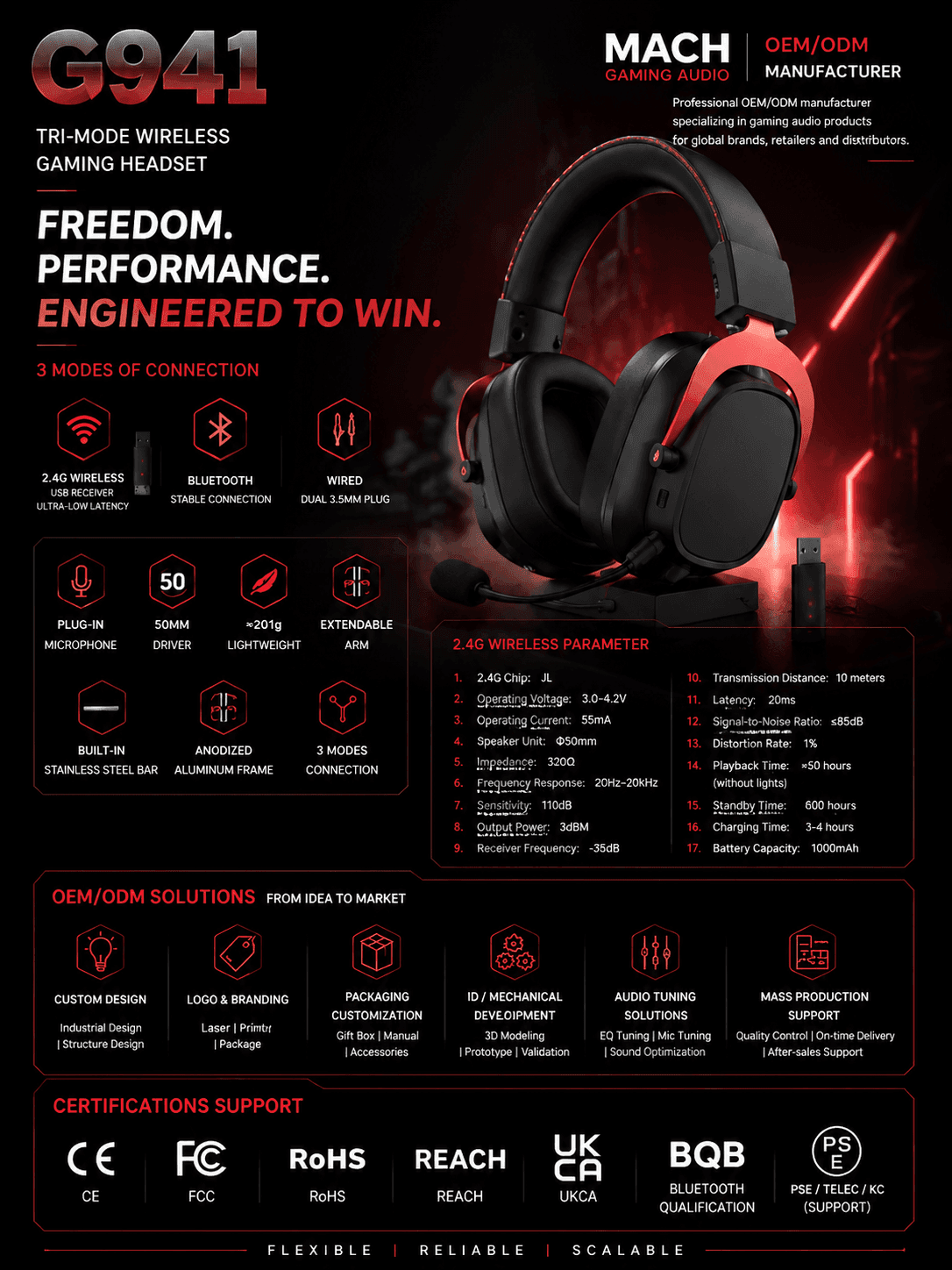

The following values come from the supplied Product Card and formal specification image. Bluetooth operating details and device-specific compatibility are not stated in a user manual and are therefore not expanded.
Model
G941 Red
Connection
2.4GHz wireless + Bluetooth + dual 3.5mm plug
2.4GHz Chip
JL
Operating Voltage
3.0–4.2V
Operating Current
55mA
Driver
50mm
Impedance
32Ω
Frequency Response
20Hz–20kHz
Sensitivity
110dB
Output Power
3dBm
Receiver Frequency
-35dB
Transmission Distance
10m
2.4GHz Latency
20ms
Signal-to-Noise Ratio
≤85dB
Distortion Rate
1%
Playback Time
Approximately 50 hours without lighting
Standby Time
600 hours
Charging Time
3–4 hours
Battery Capacity
1000mAh
Headset Weight
Approximately 201g
Microphone
Plug-in microphone with ENC support
Lighting
RGB
G941 Red OEM Applications
Lightweight wireless gaming headset collections
Red-accent private-label gaming accessory ranges
Tri-mode gaming audio projects
2.4GHz low-latency headset programs
Retail, distribution and e-commerce product portfolios
G941 Red OEM/ODM Customization
Customization scope is evaluated against the final product configuration, target market and sample approval requirements.
Logo and branding method
Color and CMF direction
Packaging, manual and accessory planning
ID and mechanical development evaluation
Audio and microphone tuning evaluation
Dongle and accessory configuration evaluation
Project Support For G941 Red
Product identity and configuration review
2.4GHz, Bluetooth and dual 3.5mm function evaluation
50mm driver and plug-in microphone inspection
Logo, appearance and packaging sample review
Reliability, aging and final inspection support
Mass-production quality control
Certification Support
Certification support is available according to the target market and final product configuration.
CE support
FCC support
RoHS support
REACH support
UKCA support
BQB support
PSE, TELEC and KC support
G941 Red Manufacturing And Quality Support

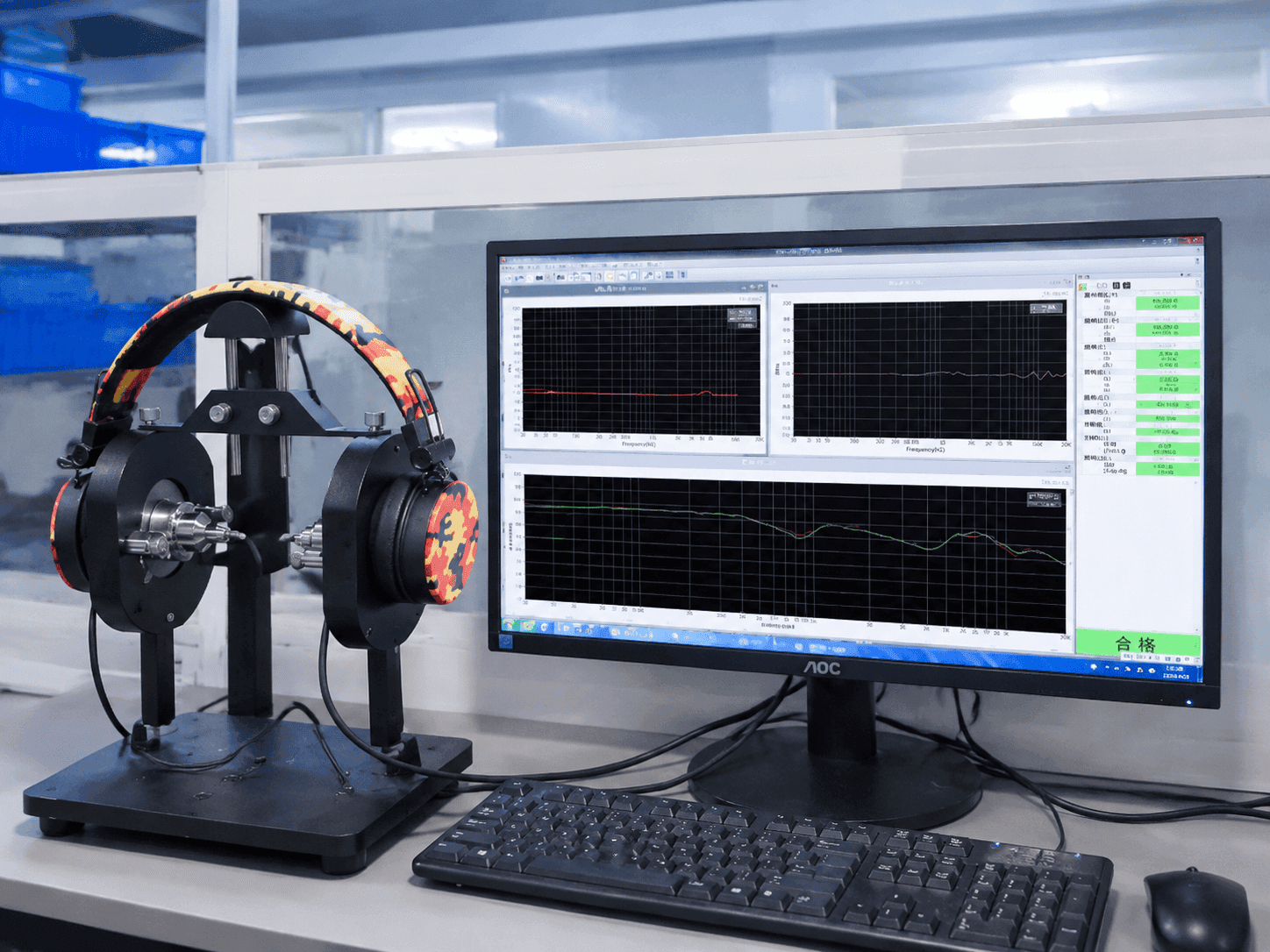

MACH can support product evaluation, sample validation, acoustic review, aging testing, assembly inspection, packaging and mass-production quality control for the approved G941 Red configuration.
Incoming component and structural checks
2.4GHz and Bluetooth function evaluation
Dual 3.5mm connection verification
Acoustic and microphone inspection
Battery and charging checks
Aging and reliability testing
Packaging and final inspection
G941 Red OEM FAQ
What is the product identity of this G941 configuration?
This page covers the G941 Red lightweight tri-mode configuration with 2.4GHz wireless, Bluetooth and dual 3.5mm connection.
How is this page different from the existing general G941 ODM page?
This product is positioned around the Product Card identity G941 Red, its approximately 201g lightweight structure and red-accent private-label direction.
What is the specified 2.4GHz latency?
The supplied specification lists 20ms latency for the 2.4GHz mode.
What driver size does G941 Red use?
The supplied specification lists a 50mm driver.
What battery information is confirmed?
The supplied specification lists a 1000mAh battery, approximately 50 hours of playback without lighting, 600 hours of standby and a 3–4 hour charging time.
Is the microphone detachable?
The supplied specification identifies a plug-in microphone, and the Product Card selects ENC microphone support.
Can the logo and appearance be customized?
Logo, branding, color and CMF requirements can be evaluated as part of the OEM project.
Can packaging be customized?
Packaging, manual and accessory requirements can be evaluated against the final project scope.
What is the MOQ?
MOQ depends on the selected product configuration, branding requirements and packaging customization. Please contact MACH for project evaluation.
Were certification documents supplied for G941 Red?
No certification files were supplied for this product. Certification support is available according to the target market and final product configuration.
Request The G941 Red OEM Package
Share your target market, expected quantity, branding direction, connection requirements and packaging scope for project evaluation.
Configuration and specification review
Logo, color and CMF evaluation
Dongle and accessory planning
Packaging and manual planning
Sample and testing requirements
Certification support requirements
Discuss Your G941 Red Gaming Audio Project
Send MACH your target market, forecast quantity, customization scope and packaging requirements for a project-specific evaluation.
MACH Gaming Audio OEM/ODM Support
MACH supports gaming audio brands with product evaluation, customization planning, sample validation, quality review, packaging preparation and mass-production coordination.
For G941 Red, the project scope can be organized around the confirmed tri-mode connection set, lightweight structure, acoustic configuration, red-accent appearance and final branding requirements.
