Three Connection Paths
Use 2.4GHz wireless for dedicated gaming, Bluetooth 5.4 for compatible wireless devices, or 3.5mm input for wired audio.
TRI-MODE WIRELESS GAMING HEADSET OEM
G90 Tri-Mode Wireless Gaming Headset
2.4GHz low-latency gaming, Bluetooth 5.4 and 3.5mm wired audio in one OEM-ready platform.
G90 combines a dedicated 2.4GHz dongle connection, Bluetooth 5.4 and 3.5mm wired input with a 40mm driver, RGB lighting and an omni-directional microphone. It is designed for gaming audio brands and private-label buyers that need flexible connection choices in one headset platform.
MODEL
G90
MOQ
Contact MACH
LEAD TIME
Project-based
A Flexible Wireless Gaming Headset Platform for Brand Programs
The G90 is a tri-mode over-ear gaming headset developed around three practical connection paths. Its dedicated 2.4GHz mode is specified at 20ms latency for gaming use, Bluetooth 5.4 supports wireless use with compatible devices, and the 3.5mm input provides a wired connection option. This combination gives product teams a single platform that can address PC, laptop, mobile and console-oriented accessory programs without presenting the headset as a one-mode device.
Inside the platform, the JL7018 solution works with a 40mm driver rated at 16Ω ±15% impedance and 114dB ±3dB sensitivity. The omni-directional microphone is specified at -42dB ±3dB, while the Product Card identifies ENC microphone support. RGB lighting creates a recognizable gaming appearance, and the included dongle supports the dedicated 2.4GHz connection.
A 900mAh battery supports the wireless modes. The supplied specification states approximately 30 hours of operation in 2.4GHz mode and 50 hours in Bluetooth mode, with a stated charging time of 1–2 hours. Actual project performance should be verified against the final firmware, lighting behavior, volume level and production configuration.
For OEM and ODM buyers, MACH can evaluate branding, color direction, packaging, dongle and accessory requirements against the G90 platform. Final customization scope, MOQ, development work and compliance planning depend on the selected configuration and target market. No fixed MOQ, lead time or completed certification status is claimed on this page.
Why Buyers Consider the G90 Platform
Specified 20ms 2.4GHz Mode
The product specification lists 20ms latency in the dedicated 2.4GHz mode for gaming-oriented applications.
Long Wireless Operating Time
The 900mAh battery is specified for 30 hours in 2.4GHz mode and 50 hours in Bluetooth mode.
OEM-Ready Gaming Appearance
RGB lighting, the white-and-black structure and an included dongle provide a defined base for brand and packaging evaluation.
Confirmed G90 Features
2.4GHz wireless connection with included dongle
Bluetooth 5.4 wireless mode
3.5mm wired audio input
20ms latency specified for 2.4GHz mode
40mm driver with 114dB ±3dB sensitivity
Omni-directional microphone with -42dB ±3dB sensitivity
ENC microphone support identified in the Product Card
900mAh battery with mode-specific working times
RGB lighting
G90 Technical Specifications
The values below are taken from the G90 Product Card and supplied specification image. Final production specifications should be reconfirmed during project evaluation.
Model
G90
Chipset
JL7018
Wireless Technology
2.4GHz + Bluetooth 5.4
Wired Connection
3.5mm jack
Dongle
Included
Latency
20ms in 2.4GHz mode
Wireless Range
10m
Driver
40mm
Driver Impedance
16Ω ±15%
Speaker Sensitivity
114dB ±3dB
Microphone Directivity
Omni-directional
Microphone Sensitivity
-42dB ±3dB
Battery
900mAh
Charging Time
1–2 hours
2.4GHz Working Time
30 hours
Bluetooth Working Time
50 hours
Lighting
RGB
Product and Buyer Applications
Gaming headset brands building a multi-connection product line
PC and laptop gaming accessory programs
Mobile gaming and Bluetooth audio projects
PS5 and PS4 accessory directions shown in the supplied specification
Private-label retail and e-commerce gaming audio programs
G90 OEM/ODM Project Evaluation
MACH evaluates customization against the final G90 configuration, target market and order requirements. Availability and development cost are confirmed after engineering review.
Brand logo and identity requirement evaluation
Product color and RGB direction evaluation
Retail packaging and user material planning
Dongle and accessory configuration review
Firmware and microphone requirement evaluation
Sampling and final specification confirmation
OEM/ODM Support for G90 Programs
Product configuration review before quotation
Branding and packaging coordination
Wireless, acoustic and microphone verification planning
Sample validation before mass production
Quality control aligned with the approved specification
Certification Support by Target Market
No G90 certification files were supplied in the product folder. Certification support is available according to the target market and final product configuration.
CE support
FCC support
RoHS and REACH support
UKCA support
KC, PSE and TELEC project evaluation
BQB / Bluetooth qualification support

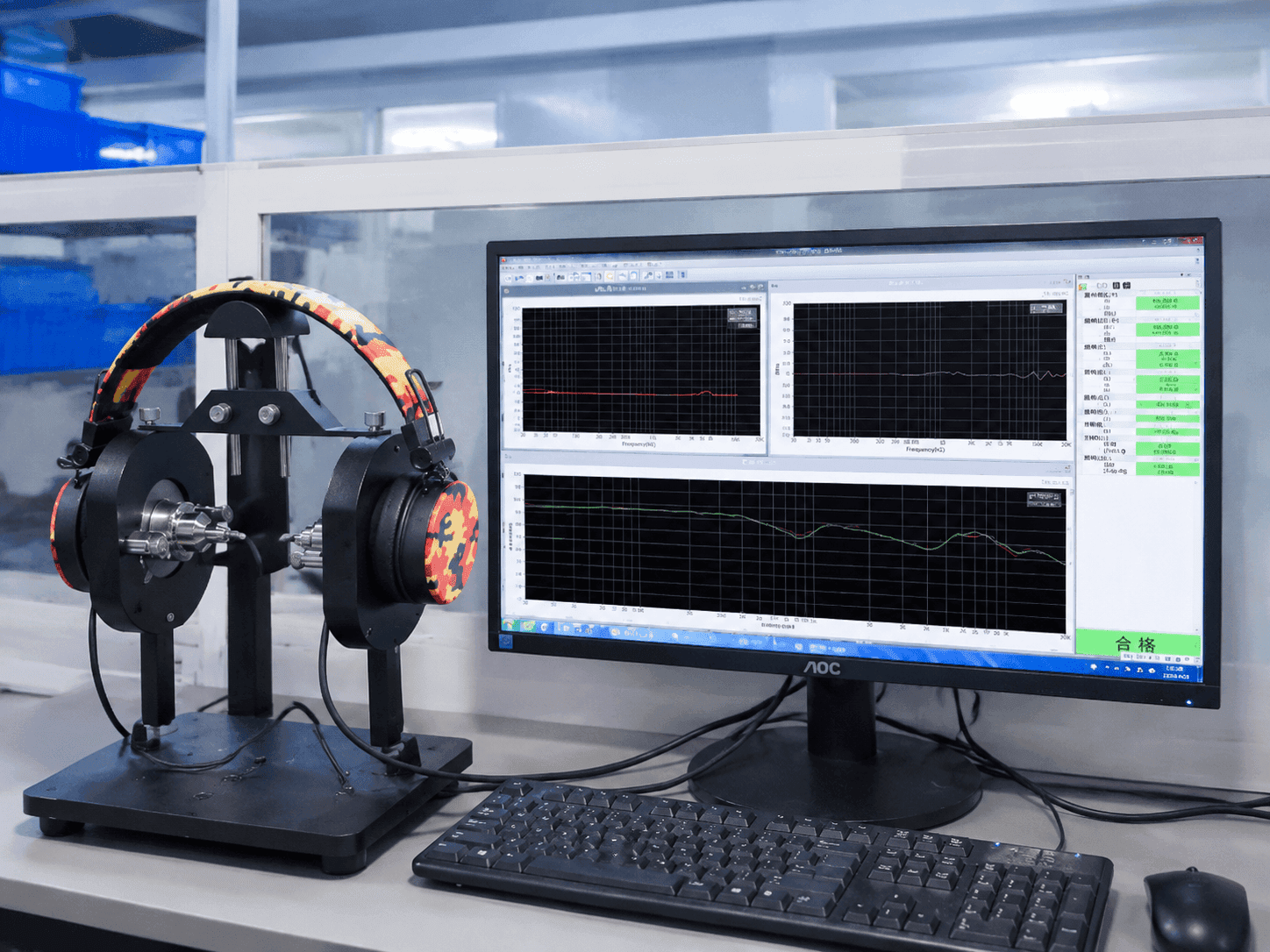

Acoustic and Production Validation
G90 project validation can include acoustic review, wireless function checks, microphone verification, charging and battery checks, RGB inspection and final appearance control against the approved sample.
Incoming material inspection
Acoustic and microphone checks
2.4GHz and Bluetooth function verification
Charging and battery inspection
RGB and appearance inspection
Final shipment inspection
G90 OEM/ODM Buyer FAQ
What connection modes does the G90 support?
The supplied Product Card confirms 2.4GHz wireless, Bluetooth 5.4 and 3.5mm wired audio modes.
What is the specified latency in 2.4GHz mode?
The G90 specification lists 20ms latency for its dedicated 2.4GHz mode.
Is a 2.4GHz dongle included?
Yes. The Product Card identifies the dongle as included for the 2.4GHz connection.
What driver does the G90 use?
The G90 uses a 40mm driver specified at 16Ω ±15% impedance and 114dB ±3dB sensitivity.
What microphone specification is confirmed?
The supplied specification lists an omni-directional microphone with -42dB ±3dB sensitivity, and the Product Card identifies ENC microphone support.
How long does the G90 operate in wireless modes?
The supplied specification states 30 hours in 2.4GHz mode and 50 hours in Bluetooth mode. Final results depend on the approved production configuration and operating conditions.
Can MACH evaluate custom branding and packaging?
Yes. MACH can review branding, color, RGB direction, packaging and accessory requirements during the OEM/ODM project evaluation.
What platforms are shown for the G90?
The supplied specification shows gaming, PC/laptop, mobile and PS5/PS4 application directions. Buyers should confirm required audio, microphone and control behavior for each target device during evaluation.
What is the MOQ for a private-label G90 project?
MOQ depends on the selected product configuration, branding requirements and packaging customization. Please contact MACH for project evaluation.
Is the G90 already certified for every listed market?
No certification files were supplied for this page. Certification support is available according to the target market and final product configuration.
Prepare a G90 RFQ
Share the target market, required connection modes, platform requirements, branding direction, packaging brief and expected order quantity so MACH can evaluate the G90 configuration.
Target market and sales channel
2.4GHz, Bluetooth and 3.5mm requirements
Branding and color direction
Packaging and accessory requirements
Compliance support requirements
Discuss Your G90 Wireless Gaming Headset Project
Send MACH your target market, device requirements, customization brief, packaging direction and expected quantity for a G90 OEM/ODM evaluation.
About MACH
MACH supports overseas gaming audio buyers with OEM/ODM product evaluation, customization, sampling and manufacturing coordination.
For G90 projects, MACH can coordinate connection requirements, acoustic components, microphone performance, RGB appearance, branding, packaging and quality control after the final configuration is confirmed.
