Three Confirmed Connection Paths
The project combines low-latency 2.4GHz wireless, Bluetooth and 3.5mm wired operation in one development platform.
Collaborative Gaming Headset Development
Black Flag Collaborative Triple-Mode Gaming Headset Project
A Low-Latency Co-Branded Development Showcase For Gaming Audio Teams
Black Flag is a not-for-sale collaborative project demonstration combining 2.4GHz wireless, Bluetooth and 3.5mm wired operation with a 50mm driver, unidirectional microphone and a no-light configuration.
Project Model
Black Flag
Availability
Not For Sale
Project Status
Development Showcase
Black Flag Project Overview
Black Flag is a collaborative gaming headset development project created to demonstrate a project-specific route from concept and appearance design through engineering, testing and manufacturing preparation. The supplied project artwork identifies it as a co-branded demonstration and not a retail product for sale.
The confirmed configuration supports 2.4GHz wireless through the included USB dongle, Bluetooth operation and 3.5mm wired audio. Its technical platform uses a JL7018M headset chipset, a JL7018M + PA transmitter architecture, 50mm drivers, an 800mAh protected battery and a unidirectional microphone.
For OEM project evaluation, the supplied materials support discussion of product marking, ear cup artwork, structural materials, transmitter branding, cable configuration and printed packaging materials. Any new collaborative branding or protected artwork requires a separate project brief and appropriate rights clearance.
Project Value For Collaborative Gaming Audio Teams
Documented Operating Logic
The supplied specification and user guide define pairing, mode switching, call handling, microphone control, charging and platform behavior.
Project-Specific Appearance Direction
The development materials cover ear cup artwork, headband treatment, structural finishes, transmitter marking, cables and packaging preparation.
Confirmed Black Flag Features
2.4GHz wireless mode with included USB transmitter
Bluetooth mode for supported computers, mobile devices and Switch audio
3.5mm wired mode for supported PC, mobile and console connections
JL7018M headset chipset and JL7018M + PA transmitter architecture
Approximately 20ms low latency in 2.4GHz mode
50mm, 16-ohm driver configuration
800mAh protected battery with approximately 2-hour charging
RF6027-C unidirectional microphone with -42dB +/-3dB sensitivity
USB-C charging with use-during-charging support
Confirmed no-light configuration
Connection, Controls And Technical Specifications
The following values and operating behavior are consolidated from the supplied product specification, component specifications and user guide, with the confirmed JL7018M and no-light configuration applied.
Product identity
Black Flag collaborative triple-mode gaming headset development project
2.4GHz mode
USB dongle connection; approximately 20ms latency; audio, microphone and volume functions are supported on Switch, PC/Mac, Android/iOS, PS5 and PS4 according to the supplied manual; Xbox dongle mode is not supported.
Bluetooth mode
Audio, microphone and volume functions are supported on PC/Mac and Android/iOS. Switch supports Bluetooth audio and volume but not microphone use. PS5, PS4 and Xbox Bluetooth modes are not supported in the supplied compatibility matrix.
3.5mm wired mode
Audio is supported on Switch, PC/Mac, Android/iOS, PS5, PS4 and Xbox. Microphone support is shown for PC/Mac, Android/iOS, PS5, PS4 and Xbox, but not Switch. The supplied matrix shows headset volume control only on PC/Mac in this mode.
Headset chipset
JL7018M
USB transmitter
JL7018M + PA architecture; approximately 25mA power consumption
Driver
50mm micro dynamic speaker; 16-ohm configuration
Microphone
RF6027-C unidirectional microphone; -42dB +/-3dB sensitivity; 65dB signal-to-noise ratio in the component specification
Battery
800mAh with protection board and NTC
Charging
USB-C; up to 450mA charging current; approximately 2 hours; charging while in use is supported
Operating time
Approximately 40 hours for the confirmed no-light configuration
Wireless range
More than 10 meters
Power and playback
Hold the power button for 2 seconds to turn on or off; short press controls play or pause; double press switches between Bluetooth and 2.4GHz modes
Volume and tracks
Short press + or - for volume; hold + for next track and hold - for previous track
Microphone control
Short press the microphone button to toggle the microphone; microphone is enabled by default
Calls and pairing
Short press answers a call, short press during a call hangs up, and long press rejects a call. Hold + and - together for 3 seconds to restart pairing.
Automatic shutdown
The headset shuts down automatically after 5 minutes without use and defaults to 2.4GHz mode when powered on
Lighting
No-light configuration, confirmed for this product page
Suitable Collaborative Project Applications
Collaborative gaming headset development programs
Co-branded product development demonstrations
Gaming audio brand engineering evaluations
Private-label headset platform planning
Importer and distributor product assessment
Retail and marketplace product manager review
Black Flag OEM/ODM Project Scope
The supplied project materials support evaluation of the following appearance, accessory and packaging work. Final scope depends on the project brief, configuration and rights-cleared branding assets.
Product logo and marking evaluation
Ear cup artwork, texture and surface treatment
Braided headband and structural material direction
USB transmitter logo printing
Charging cable and 3.5mm audio cable configuration
Color box and inner card preparation
User manual and promotional brochure preparation
Outer carton and sealing label preparation
Project Execution Capabilities Shown In The Supplied Materials
Dedicated OEM/ODM project team
SMT production support
Acoustic test room evaluation
Reliability testing
Aging testing
Final inspection area
Packaging line and quality control
Warehouse handling support
Certification Support
Certification support is available according to the target market and final product configuration.
CE support
FCC support
RoHS support
REACH support
KC support
UKCA support
PSE support
TELEC and Bluetooth qualification support

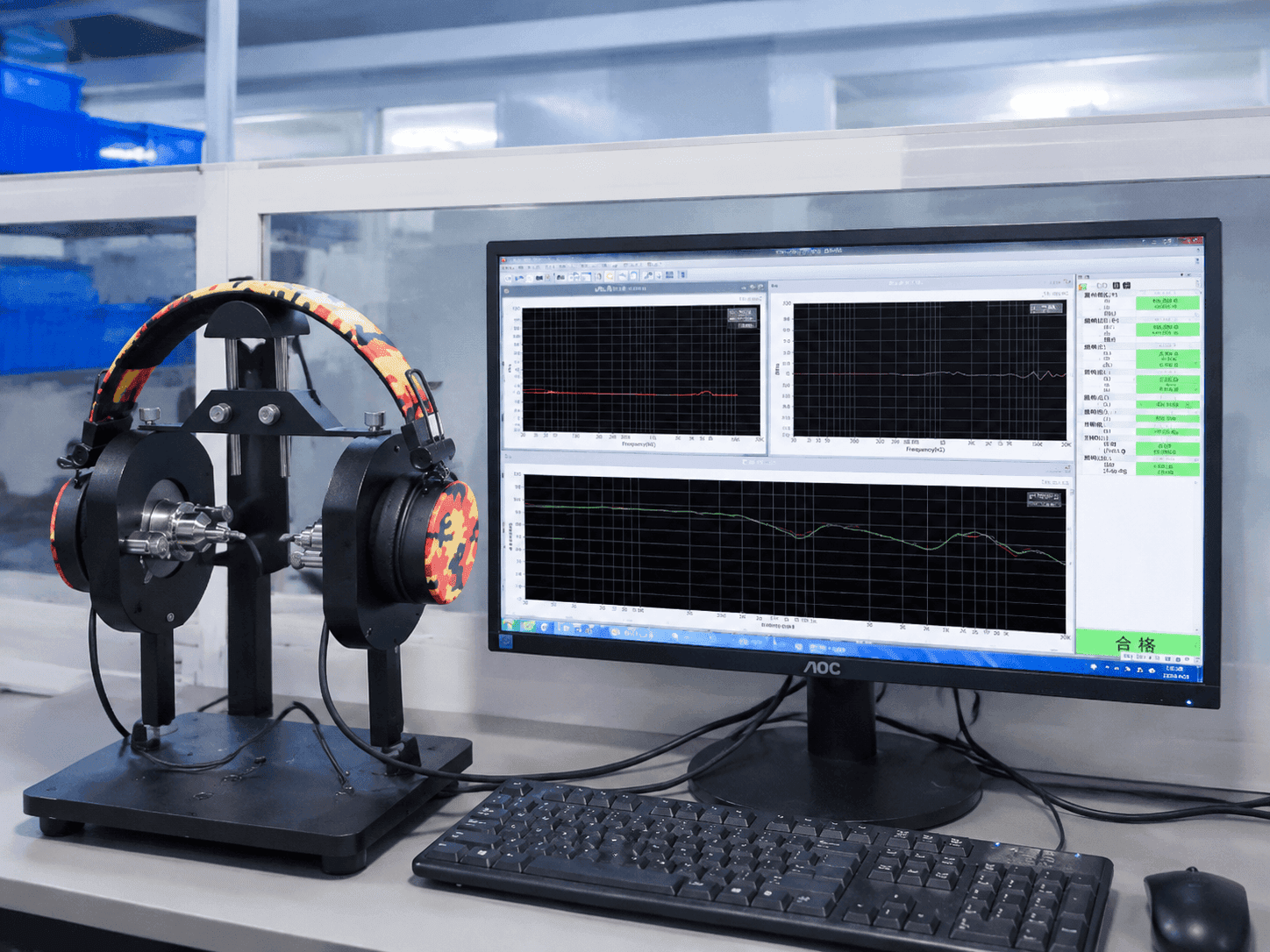

Acoustic Evaluation And Production Support
The supplied project materials document an OEM/ODM workflow covering concept, appearance design, engineering, acoustic evaluation, reliability and aging tests, final inspection, packaging quality control and warehouse handling.
Concept and appearance design coordination
Engineering and sample evaluation
Acoustic response testing
Reliability and aging testing
Final functional inspection
Packaging and quality control coordination
Black Flag Project FAQ
What connection modes are confirmed for the Black Flag headset?
The confirmed configuration supports 2.4GHz wireless through the supplied USB dongle, Bluetooth and 3.5mm wired audio.
Which platforms support the Black Flag 2.4GHz dongle mode?
The supplied manual shows 2.4GHz dongle audio, microphone and volume support on Switch, PC/Mac, Android/iOS, PS5 and PS4. Xbox dongle mode is not supported.
How does Bluetooth platform support differ?
Bluetooth audio, microphone and volume functions are shown for PC/Mac and Android/iOS. Switch supports Bluetooth audio and volume but not microphone use. Bluetooth operation is not shown for PS5, PS4 or Xbox.
What does the 3.5mm connection support?
The manual shows 3.5mm audio on Switch, PC/Mac, Android/iOS, PS5, PS4 and Xbox. Microphone support is shown on all of those except Switch, while headset volume control is shown only on PC/Mac.
What chipset and latency are used in this configuration?
This page uses the confirmed JL7018M headset chipset and JL7018M + PA transmitter architecture. The product specification lists approximately 20ms latency in 2.4GHz mode.
What driver and microphone are specified?
The headset uses a 50mm, 16-ohm driver configuration and an RF6027-C unidirectional microphone rated at -42dB +/-3dB sensitivity.
Does this Black Flag configuration include lighting?
No. The confirmed configuration for this page is a no-light version.
What battery and charging information is confirmed?
The supplied specification lists an 800mAh protected battery, USB-C charging, up to 450mA charging current, approximately 2 hours charging time and charging while in use. The no-light configuration is listed at approximately 40 hours operating time.
Can MACH evaluate a related collaborative OEM/ODM project?
Yes. A separate project can be evaluated for product marking, ear cup artwork, structural materials, transmitter branding, cables and packaging. Collaborative branding and protected artwork require an approved project brief and appropriate rights clearance.
What is the MOQ for a related custom project?
MOQ depends on the selected product configuration, branding requirements and packaging customization. Please contact MACH for project evaluation.
Is the displayed Black Flag project already certified?
No formal certification files were supplied for publication. Certification support is available according to the target market and final product configuration.
Is the displayed Black Flag headset available for sale?
No. The supplied project artwork identifies this co-branded project as not for sale and presents it as a demonstration of development capability.
Request A Collaborative Headset Project Review
Share the target market, connection requirements, branding scope, rights-cleared artwork, expected quantity and packaging direction for evaluation of a separate collaborative gaming headset project.
Triple-mode configuration review
JL7018M platform evaluation
50mm driver and microphone review
Appearance and material direction
Cable and USB transmitter planning
Packaging and certification support requirements
Discuss A Collaborative Gaming Audio Project
Send MACH your target market, required connection modes, branding scope, rights-cleared artwork, forecast quantity and packaging requirements for project evaluation.
MACH Collaborative Gaming Audio Support
The supplied Black Flag materials document a project workflow spanning concept development, appearance and structural definition, engineering, acoustic evaluation, reliability and aging tests, final inspection and packaging quality control.
For a separate OEM/ODM program, MACH can evaluate the confirmed JL7018M triple-mode architecture together with project-specific appearance, accessory and packaging requirements. Any collaborative marks or protected artwork must be supplied with the appropriate project authorization.
